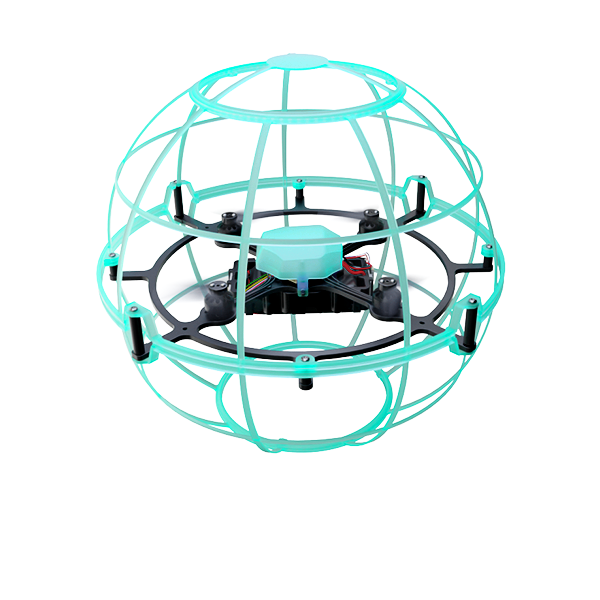

Brushless Soccer Drone

Radiolink BDS200

Professional Drone for Competitions

Radiolink High-speed

Altitude-hold FC

Patent Tumbler Ball Frame Design

Anti-interference Communication Technology

High Configuration

Three Working Modes

High Performance-to-price Ratio

Quality Assurance

Lightweight and Crash-resistant All-resin Material

There is a thick shock-absorbing foam in the bag to protect the drone from falling from the height of the bag and long-distance transportation.

The side of the backpack is equipped with a name card slot for participating students to fill in their name, class, and contact information to avoid taking the wrong bag or losing it.

Dust-proof and waterproof portable backpack, which is easy to carry by hand and cross diagonally, can be carried away immediately regardless of going out for training or participating in competitions.

All accessories are equipped with card slots to prevent students from missing other equipment for the competition.

Radiolink High-speed Altitude-hold Flight Controller


RadioLink has been focusing on high-speed autonomous flight controllers for more than 10 years. The inertial navigation of the gyro, accelerometer, and barometer and the Kalman filter altitude-hold algorithm perfectly solves the contradiction between high speed and stability, greatly reducing the difficulty of beginning and allowing the public to experience the flying pleasure of competitive racing.

The high-speed and accurate altitude-hold mode eliminates the need for the players to adjust the height repeatedly, which is convenient for crossing the goal and scoring smoothly, improving the excitement of the game.

Outdoor Experience of Radiolink Soccer Drone

Anti-interference Communication Technology


With 21 years of technology accumulation in wireless communications, Radiolink's unique non-interference communication algorithm for hundreds of people competing simultaneously on the same field has shown its advantages in soccer drone team competitions.

High Configuration


Competition configurations like Gensace battery, Gemfan propellers,

SZ-SPEED motors, Radiolink flight controller, transmitter, and receiver.

The accessories are all top brands in the industry.

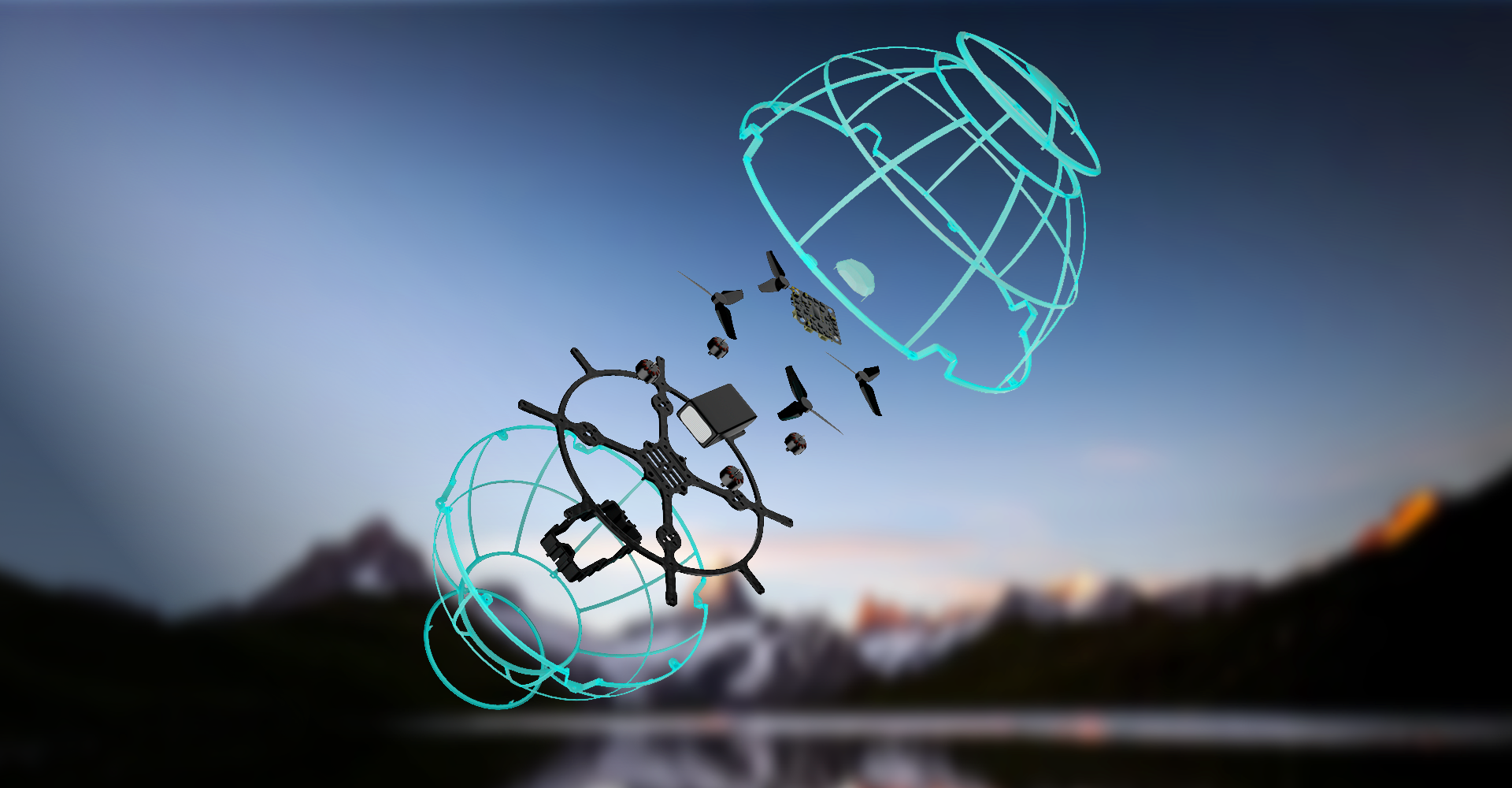

Radiolink Stack(Flight Controller with 4-in-1 ESC)

SZ-SPEED 1303 10000KV Brushless Motors

Gemfan 2520 1.5 Axis Hole Propellers

Gensace 7.4V 850mAh 35C LiPo Battery

High Performance-to-price Ratio


All accessories such as stack, batteries, motors, ESC, and propellers are standard parts and standard interfaces.

Users can easily purchase replacement accessories with low replacement costs.

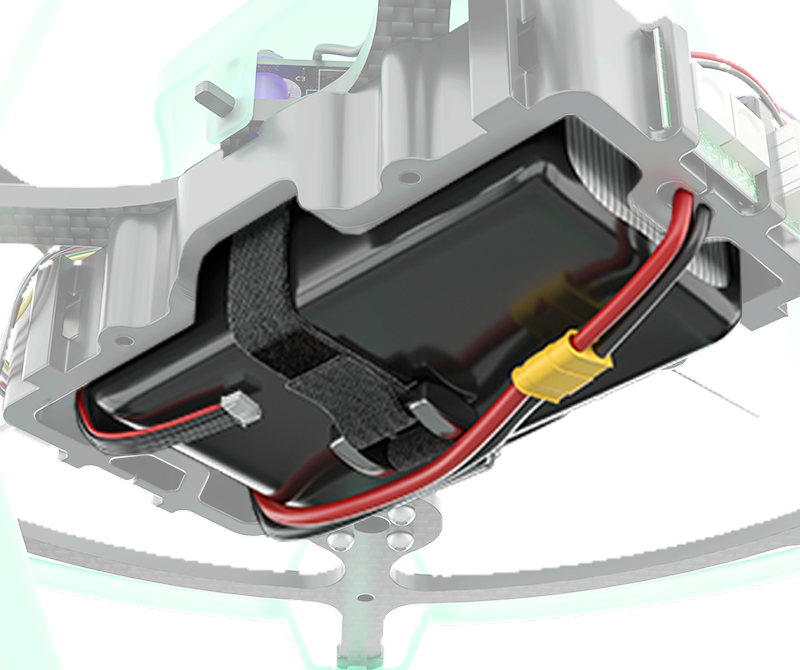

Gensace Battery

6-minute Flight Time


Gensace 7.4V 850mAh 35C lipo battery, equipped with high-quality cells, good heat dissipation effect, difficult to swell, long cycle life, and continuous surging power output.

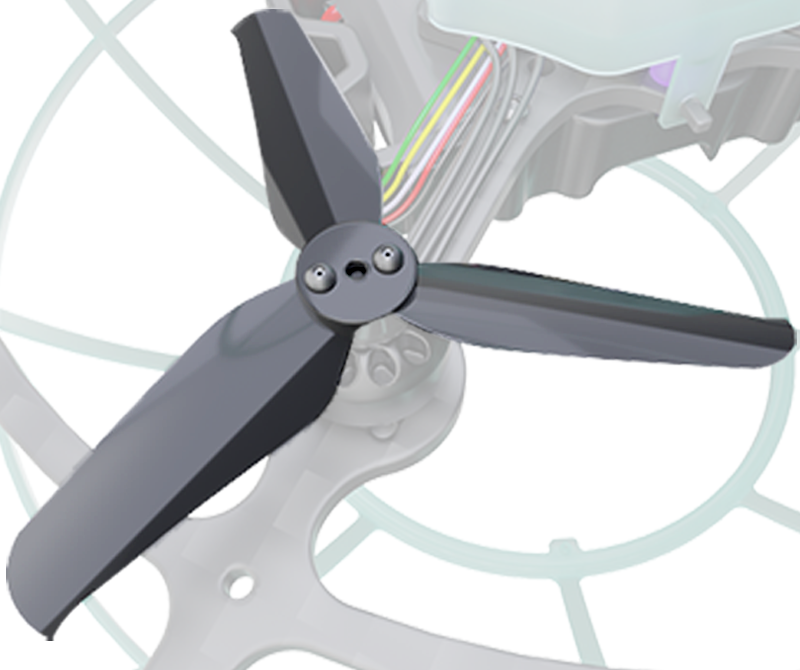

Gemfan Propellers Ensure a Stable Flight


Fully considering the aerodynamic principle, the influence of the weight of the blade and the thickness distribution of each part to the rotational inertia is repeatedly tested and modified. The rotation balance is realized with less vibration to make a smoother flight and more delicate stunts.

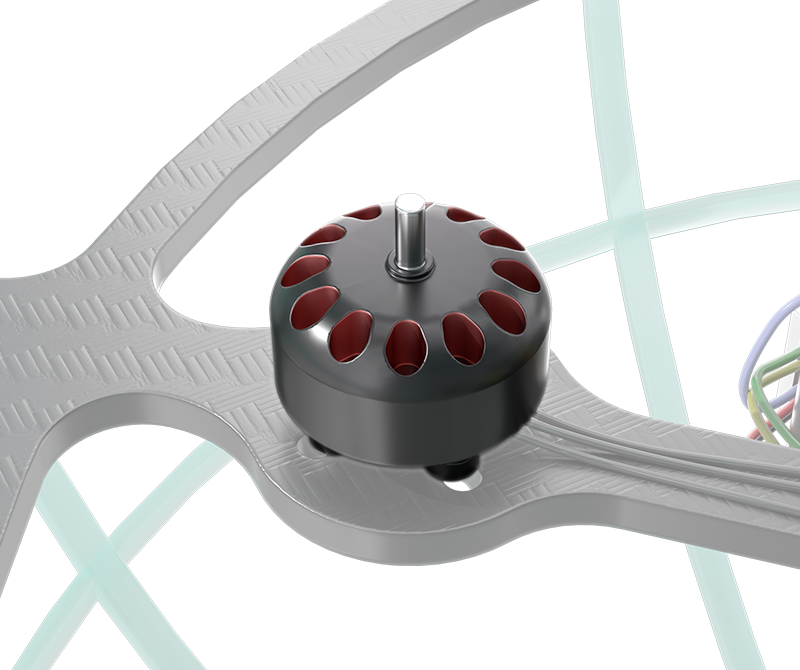

SZ-SPEED Brushless Motors


Good mechanical design ensures the heat dissipation of the base.

The linear output power ensures higher efficiency, more steady flight, and longer flight time.

Radiolink Portable 20-minute LiPo Battery Fast Charger

Designed by Professional Technology


RadioLink's new circuit design of 1.5A 2S lipo battery charger CM210, with the universal Type-C input port balance charger, computer USB port, power bank, mobile phone adapter, and car charger can be used as the CM210 power supply, charging is as convenient and simple as a mobile phone does, ideal for outdoors.

Radiolink Remote Controller, 2KM Control Distance


The RTF version comes with an 8-channel remote controller which can be adjusted parameters by mobile phone APP.

Equipped with the top potentiometer made in Noble from Japan, the control accuracy of the joysticks is 0.25 microseconds.

The transmitter T8S(BT), with military-grade communication chips, achieves superior anti-interference ability to both the same frequency band and different frequency bands. The control distance is 2000 meters(1.24 miles) in air.

Three Working Modes


Altitude-hold and Stabilize Modes can be switched with one button.

After the soccer drone is flipped, the CH8 roller switch can reverse the motors to flip it over after a crash.

The Stabilize Mode helps the soccer drone to score through the goal at high speed, and the goalkeeper

switches to the Altitude-hold Mode to keep the goal, winning the gold medal/best goalkeeper.

Armed

Null

Disarmed

Flip Over after Crash Mode

Altitude-hold Mode

Altitude-hold Mode

Stabilize Mode

LED Switching

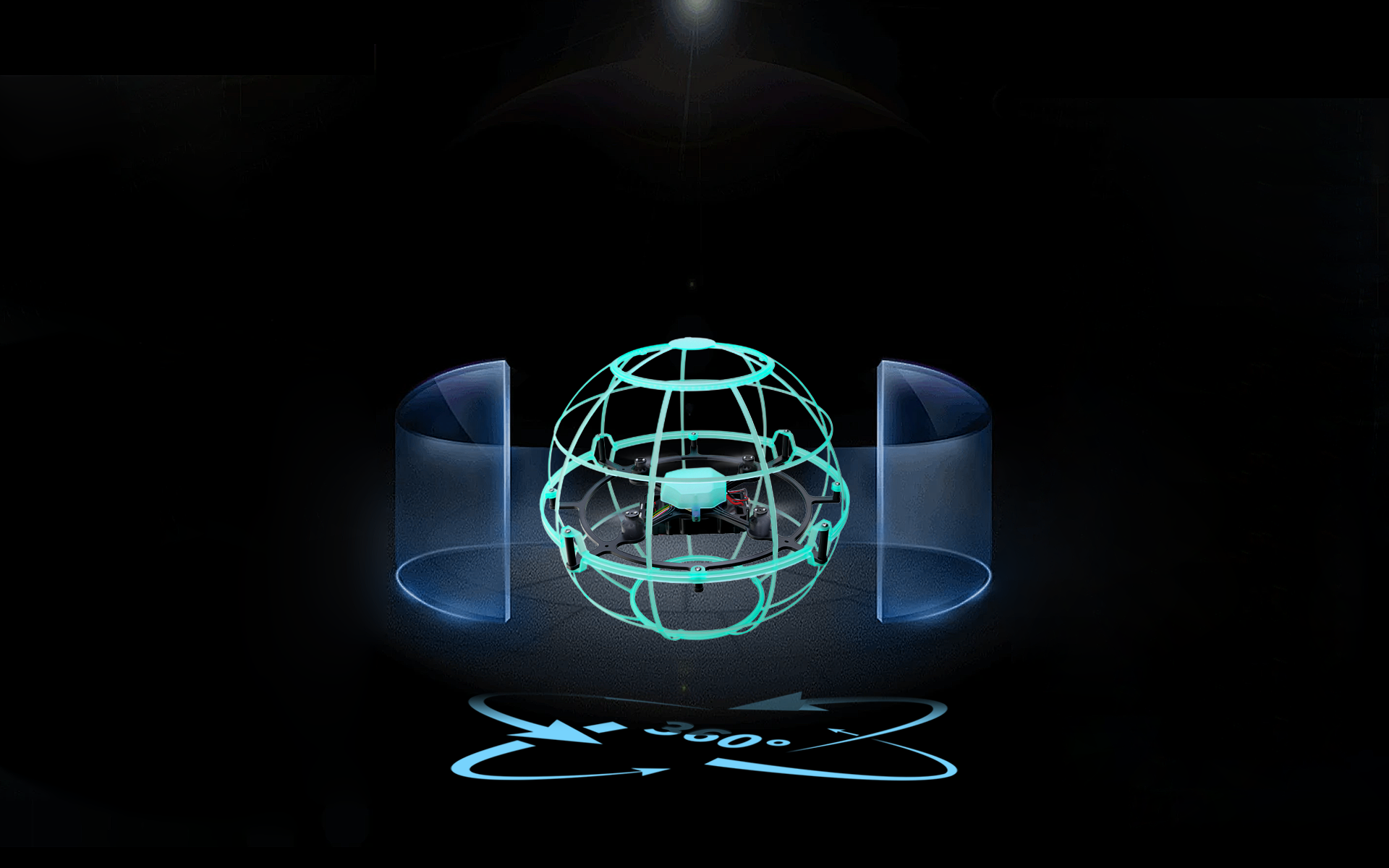

Patent Tumbler Ball Frame Design


The soccer drone can be quickly restored to its original position after falling at any angle, which solves the problem that it is difficult to flip over after falling on its back, ensuring that all three players in the team can continue to participate in the competition effectively.

Low Voltage Protection


The receiver R8XM integrated the fly-by range telemetry function. When the power battery voltage is lower than 6.7V, the green light of the flight controller starts to flash slowly to indicate the return of flight, and the soccer drone slowly descends 5 seconds later to ensure a safe landing.

Parameters can be easily set up and modified with an Android or iOS mobile APP connected via Bluetooth. The low transmitter, receiver, and power battery voltage alarm value can be set according to actual needs.

Lightweight and Crash-resistant All-resin Material


Made of new crash-resistant material, it will be safe even in the case of strong collisions and violent falls in competition.

Quality Assurance


After 21 years of development, Radiolink has established gitlab, ERP, CRM and other systems, from research

and development, production, inspection, procurement, to after-sales information management system.

The reputation of Radiolink products over the years comes from strict product quality standards.

Reasons for Schools Start the Soccer Drone Project

Comprehensive Security Protection


Different from the traditional racing drones' blade bare design, the soccer drone uses a high-toughness material frame, and 360 degrees full encircling protection, to avoid injury caused by accidentally touching the propellers in training and competition.

Small Space Supported


Unlike the traditional fixed-wings or crossing drones which need a large training and flight field, even the flight field of the international competition only needs an area of 16m * 7m * 4.5m, which is easy to find. The booming international and national competitions provide students with a more professional and wide-ranging exchange platform and provide new ideas for schools to build quality education and science and technology teaching.

* The flight data of the BDS200 was tested in a good flight environment, the actual control is related to the flight conditions.

* If you encounter problems while using BDS200, you can check the instructions, usage tutorials, or FAQs on the navigation bar of this introduction

* After reading all the tutorials, if you still have questions about the operation, you can consult our technical support.



BDS200 Packing List

  • BDS200 Soccer Drone *1

  • 8CH Transmitter T8S*1

  • Gensace 7.4V 850mAh Battery*1

  • Balance Charger CM210(2S)*1

  • Charging Cable (for CM210)*1

  • Upgrade Cable (for T8S)*1

  • Screwdriver*1

  • Hook and Spring*1

  • Bag*1
